2 Ply Corrugation Cardboard Corrugated Carton Box Machine

Brand Name : Hh

Model Number : 1600mm 1800mm 2000mm

Certification : CE EAC

Place of Origin : CHINA

MOQ : 1

Price : negotiated

Payment Terms : T/T

Supply Ability : 30 sets every month

Delivery Time : 5-8 days

Packaging Details : plastic

Feeder Way : automatic

Machine Size : 7300×2000×1900MM

Shaft Roller : 6 or 8

Automatic Grade : Semi-automatic

Structure : new design

Collect Paper Table : Hydraulic type

Machinery Test : Provided

Function : Box Making

Production Capacity : 100-150pieces/min

Motor Power : 11kw

After Warranty : one year

Effective Width : 1400-2500mm

Contact Now

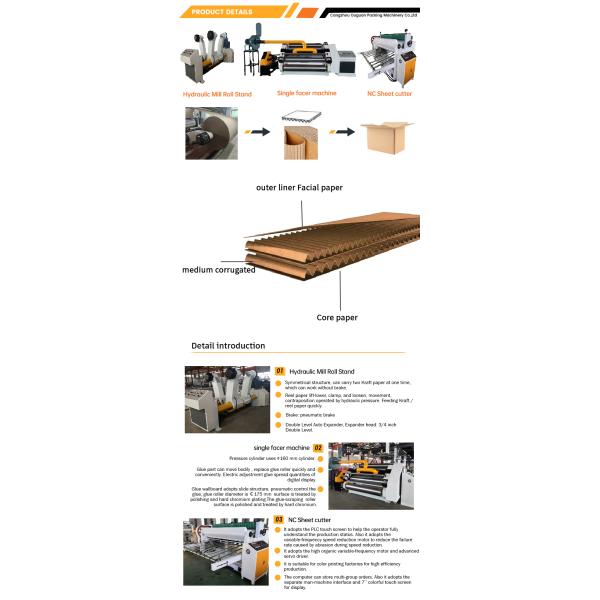

2 Ply Corrugation Cardboard Corrugated Carton Box Machine

NC-120 2ply slitter & cross cutter machine
1)Adopt high speed steel plate blade The slitter unit and cross cutting unit are isolated, which is convenient to adjust and change the blade Slitter is round blade cutting , manual adjust the blade. 2)Cross cutting is Flat straight knife he gear of cross cut unit adopt un-key joint which will never loose. Transmission gear adopt 40Cr , which will thermal refining ,then the surface of gear quench and abrasive planning, adopt Oil-immersed lubricationRoller stacker3)As an important part of the paperboard production line, the machine is used to complete the collection and finishing of the paperboard, which greatly reduces labor costs and improves production efficiency. The whole machine adopts servo, PLC control, and the operation screen is simple and easy to learn.

NC-120 2ply slitter & cross cutter machine
Working width	1600mm
The Max. machinery speed	100m/min
Total power	18KW
Diameter of cutting paper knife roller	188mm
Cutting length	500mm-9999mm
Cutting accuracy	±1mm( keeping steady speed)
Max collection paper length	1300mm
Chang order method	Manual or automatic ,can store 200-group orders
Roller stacker
Working width	1600mm
Operation direction	Left or right choose by customer factory
Max machinery speed	100m/min
Stacker length	min:500mm max:1300mm
First part of motor power	3.0kw (frequency conversion and speed adjust motor )
Second and third part of motor power	2.2 kw
Roller output motor power	2.2 kw (gear reducer )

2 Ply Corrugation Cardboard Corrugated Carton Box Machine
